Garmin Standard avionics

ADAHRS


The GSU 25 ADAHRS tells the G3X Touch when the plane is level and is included in the base price. It sends signals to the G3X Touch, the Transponder, and the GPS.

GMU 11 Magnetometer


The GMU 11 Magnetometer keeps the directional gyro within the G3X Touch in sync. You never need to reset your DG to the mag compass. The GMU 11 does this automatically. It is included in the base price.

GTP 59 Temperature Probe


This GTP 59 Temperature probe is mounted externally on the Bristell to tell the G3X Touch the outside air temperature. It is included in the Bristell standard base price.

Garmin GAP26 heated AOA Probe


 The Garmin GAP 26 is a heated AOA Probe that gives the angle of attack indicator  information as well as providing airspeed info for the G3X. It is included in the Bristell base price. The average Bristell buyer does not need this heated Pitot probe, but our delivery pilots flying in more challenging weather really appreciate that we have a heated pitot tubes and AOA's on all Bristell's


Garmin GTR 20R


The Garmin GTR 20R is a remote Com radio that is located behind the panel and controlled from the G3X Touch screen. It is light weight, dependable and does not require space in the panel. Older airplanes have radios that look terrible after many years. The remote mounted Com will display like new as long as the G3X is working. It is included in the base price of the Bristell.

GTX 45R ADS-B TXP


 The Garmin GTX 45R is a remote transponder radio that is located behind the panel and controlled from the G3X Touch screen. It is ADS-B compatible and one component of the ADS-B solution.  It is included in the base price of the Bristell.

Garmin GPS 20A


The GPS 20A tells the G3X Touch and the GTX 45R the info required to complete the ADS-B information.  . It sends signals to the G3X Touch, the Transponder, and the GPS. It is included in the base price of the Bristell.

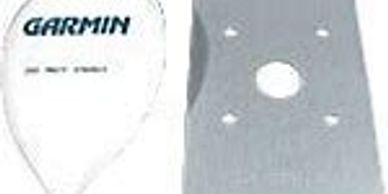

GA57X Antenna


The GA57X antenna picks up the signal for the GPS and the ADS-B solution. It is included in the base price.

GDL 51R Xm receiver


This GDL 51R  is mounted internally on the Bristell to provide traffic and weather information as received from the satellites. The signal is provided by  Xm Sirius radio on a subscription basis. The monthly fee for basic traffic and weather is about $40 per month. The first six months of the subscription  is included in the Bristell standard base price.

Garmin GEA24 engine probes install kit




 The Garmin GEA 24 is the engine interface unit that provides engine information to  the G3X. It is included in the Bristell base price.

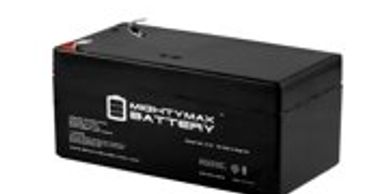

IBBS-12V-3AH


The IBBS-12V-3AH battery provides independent battery power for the G3X touch in the event of a power failure. The G3X Touch will work for 20 minutes with this back up battery  that is located behind the panel.   It is light weight, dependable and does not require space in the panel.  It is included in the base price of the Bristell.

It should be replaced every two years.

Garmin Signature Package

Signature Avionics Package


The Signature Avionics package is a $13,206 upgrade and  includes a second  10" EFIS, Electronic Flight Information System. A second GMU11 magnetometer.

Second ADAHRS


The GSU 25 ADAHRS tells the G3X Touch when the plane is level and is included in the base price.  The Signature Package includes a second ADAHRS.

IBBS-12V-3AH


The IBBS-12V-3AH battery provides independent battery power for the G3X touch in the event of a power failure.  The Signature Package includes a second back up battery.

GA57X Antenna


 The GA57X antenna picks up the signal for the GPS and the ADS-B solution. A second GA57X antenna is included in the Signature Package. It sends the signal to the second G3X Touch.

Garmin G3X Installation kit



The Signature Package includes a second G3X installation kit.

Garmin GEA24 engine probes install kit


 The Garmin GEA 24 is the engine interface unit that provides engine information to  the G3X.  The Signature Package includes a second GEA 24 engine probe kit for the second G3X Touch.

Garmin Ultimate Panel

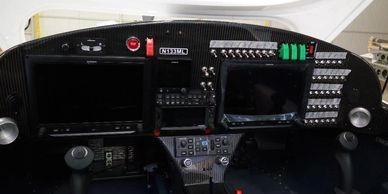

The Ultimate Panel


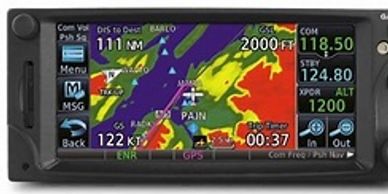

 Garmin GTN 650, GAD29, ILS ant, GMA345 Audio Panel, Second Com Radio, Certified Nav/ILS/GPS,

back up G5 EFIS and back up batteries.

$27,674 Option

G3X Touch


Large 10" display is easy to see and easy to use. The GTN 650 sends the data for ILS and GPS approaches to the G3X Touch.




Gad 29 ARINC 429 Interface


 The GAD 29 ARINC 429 interface is required to have the GTN650 interface with the ILS receiver so the glide slope can display properly on the G3X Touch.

garmin autopilot choices


BASIC AUTOPILOT $5900 OPERATED FROM THE G3X

The basic autopilot is $5900 and includes heading hold, GPS steering, and altitude hold. It also includes rate of climb and ESP, Electronic Stability Control.

THE ADVANCED AUTOPILOT

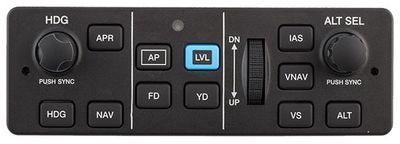

The advanced autopilot includes the GMC 507 module as displayed in the picture.

LEVEL BUTTON LVL

The blue level button  LVL will hold heading and altitude by the push of a button.

HDG HEADING CONTROL KNOB

The HDG knob controls the heading of the aircraft. A blue bug will appear on the DG.

The AP BUTTON TURNS THE AUTOPILOT ON AND OFF

You gently touch the AP button to turn the autopilot on and off.

ALT SEL IS THE ALTITUDE SELECT KNOB

You twist the ALT SEL knob to select the chosen altitude. A blue bug will appear above the altimeter.

Garmin advanced autopilot components


Advanced Autopilot with GMC 507 module $7995

The IAS button controls the rate of climb based on indicated airspeed.

VNAV IS VERTICAL NAVIGATION

VERTICAL NAVIGATION IS FOR CLIMB AND DESCENT AND CONTROLLED BY IAS OR VS.

VS or IAS BUTTONS

The VS button will control climb and descent by rate of climb. The vs will be displayed on the G3X Touch by a blue bug to the right of the altitude. The IAS button will control climb based on a selected indicated airspeed.

HDG HEADING CONTROL KNOB

The HDG knob controls the heading of the aircraft.

NAV BUTTON

When you push the NAV BUTTON the autopilot will follow the magenta line on the G3X Touch which in navigating to your destination.  The blue heading bug will disappear and a small airplane will be on the line.

YD KNOB

The YD knob stands for Yaw Dampener, which is not offered for the Bristell.
